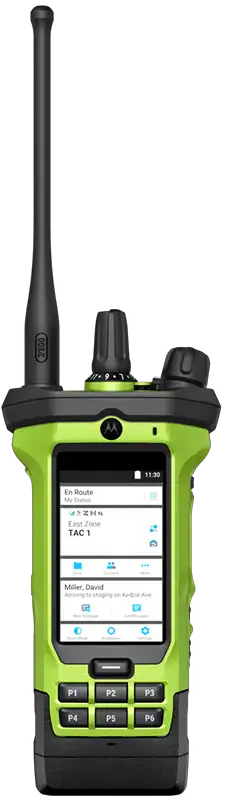

Motorola APX N70 XE Single-Band P25 Smart Radio
P25 Operation | Single-Band | Touchscreen
Single-Band Smart Firefighter Radio
Keeping firefighters safe, focused and always in touch during critical moments
Made for firefighters and EMS, it combines high tier adaptive audio with intuitive operation, advanced connectivity, and streamlined device management. Every element of the rugged, ergonomic design maximizes task performance in unpredictable situations.
Ensuring fire personnel stay safe, focused and connected during the most challenging incidents
Easy to use and manage, the APX N70 XE keeps firefighters and other first responders informed and connected with crystal-clear speech quality. It offers seamless on-the-go access to productivity-focused apps and services that enhance situational awareness and tighten collaboration between team members.
High Dynamic Range Microphones (HDR)
Strategically placed HDR microphones on both sides of the radio and RSM enhance intelligibility by reducing noise and distortion across the range for both extremely loud and soft inputs. Even in stressful situations that may lead to screaming, transmitted speech will be more intelligible.
Custom speaker
The HDR microphones provide more intelligible input, resulting in clearer audio. The custom speaker delivers loud and clear audio, ensuring every syllable is heard in chaotic situations.
Adaptive audio engine
Our APX Adaptive Audio Engine uses advanced technology and multiple microphones to track your voice and block out background noise, providing clear audio in any environment.
Respinsive audio
The APX N70 XE radio automatically adjusts the volume for loud or soft talkers and changes in ambient noise, allowing you to keep your hands on the wheel and your attention forward.
Performance Characteristics
Frequency Band:
700/800 Mhz
Frequency Range:
762-776, 792-806 MHz; 806-825, 851-870 MHz
Power Output:
1-3 Watt
Number of Channels/Zones:
3000 Channels / 200 Zones
Channel spacing:
12.5 / 20 / 25 kHz
Physical Characteristics
Dimensions H x W x D (with standard battery)
6.3 x 2.4 x 1.9 inches
Weight (with standard battery)
20.9 oz
Display
Front: 3.0” Corning® Gorilla® Glass touch screen: 360×600 TFT 24-bit Full Color Transflective Display
Top:1.2” Top Display: 200×112 TFT 18-bit Color Transflective Screen, 1 Line of Icons, 2 Lines of Text, 14 Characters per Line, 2 mm Toughened Glass Lens
User Environment
Operating temperature
(-22 to +140 ºF)
Mil spec
810 C, 810 D, 810 E, 810 F, 810 G
IP Standards
IP6x Dust
IPx8 submersion (2 m, 2 hr)
Features
- Tough, familiar, and ready to handle any challenge
- UL, Div 1 HAZLOC battery for extreme conditions
- Adaptive audio, responsive to your environment
- 3” Corning® Gorilla® Glass touch screen
- LTE, WiFi and Bluetooth for ultra-connectivity
- Smart applications, for intelligence in the field
- T-grip design to securely hold on to the radio
- Over-the-air programming with RadioCentral
Capabilities
Rugged performer
Differing knob shapes and sizes that feel “just right” allow firefighters to operate safely and confidently on a radio they already know and trust. Its controls are easy to operate, and programmable buttons provide quick access to key functions. The toughened touchscreen and secondary display ensure optimal functionality and visibility, even when wearing gloves or when the radio is holstered. Hands-free voice commands and Fall Alert further enhance user safety and ease of use.
Maximum clarity
Loud, clear audio ensures crucial messages are heard. Dual HDR mics pick up a firefighter’s voice, even when workers are shouting in stressful situations. Volume is automatically adjusted so loud or soft talkers are heard. Feedback suppression cuts the howl of feedback when colleagues’ radios are in close proximity. The powerful speaker maximizes intelligibility in noisy environments, doubling as a Speaker As Mic (SAM) that filters wind and background noise without impairing quality.
Intelligence beyond P25
Seamless switching between P25 and LTE/Wi-Fi maintains wide-area connection and supports responders with workflow-boosting apps. SmartLocate gives a rapid fix on colleagues’ positions. SmartMessaging adds photos/videos to incident descriptions. SmartMapping pinpoints nearby personnel. SmartIncident consolidates assignments, CAD comments, and resource/hazard views. SmartProgramming speeds over-the-air radio updates, keeping radios active in the field.
Streamlined ownership
Streamlined fleet set-up and management saves time and reduces costs. Software updates are pushed to devices in the field over Wi-Fi or LTE. An efficient web-based interface eliminates the need to recall radios for manual updates. Touchless Key Provisioning delivers encryption keys and updates over the air, ensuring that critical voice and data communications are never at risk of interception.
