Motorola XPR 2500

Motorola XPR 2500 | VHF/UHF Analog/Digital 128 Channels Mobile Radio

A powerhouse of digital radio technology in a compact package. Experience seamless communication with integrated voice systems capability, enabling advanced functionalities With the Motorola XPR 2500 Mobile Two-Way Radio.

Experience the next level of digital communication with Motorola. Introducing the MOTOTRBO™ XPR 2500 mobile radios – a fusion of compact design and remarkable capability, ensuring seamless connectivity for workers engaged in cargo handling or passenger transport. As a proud member of the MOTOTRBO radio series, the XPR 2500 redefines digital radio technology, boasting integrated voice systems capability, double the calling capacity, and unparalleled voice clarity. The XPR 2500 delivers the best in digital radio technology.

Say goodbye to the inconvenience of adjusting radio volume to catch important calls. Our Intelligent Audio feature takes care of it for you. By intelligently analyzing background noise, the radio dynamically adjusts its volume to ensure you never miss a call again. Elevate your communication game with Motorola – where innovation meets connectivity.

Motorola XPR 2500 Features

Transmit Interrupt Capability:
Enables a user to interrupt another radio conversation to deliver critical communication exactly when and where it’s needed.

Compatible with Radio Management Suite:
Program your radios quickly and efficiently, with the Radio Management tool. Radios can be programmed in batches to a standardized template, giving error-free results and optimized performance.

Over the Air Programming (OTAP):
Manages, writes and reads up to 5,000 radio configurations over the air.

Intelligent Audio:
Radio volume automatically adjusts to compensate for background noise so workers don’t have to adjust their radio volume to avoid missing a call in loud situations or disturbing others when they move into quiet places.

Enhanced Privacy:
Built-in scrambling for increased security.

Whether it’s a whisper during a covert operation in a dark alley or commanding a noisy fire scene, IMPRES audio accessories are loud, clear and intelligible in both analog and digital modes.

Systems Capability:
Experience the far-reaching coverage of MOTOTRBO. IP Site Connect uses the Internet to extend coverage to create a wide-area network, while Capacity Plus single-site trunking expands capacity to over 1000 users without adding new frequencies.

IP54 Rated:
Protects your radio from dust and spills.

Motorola XPR 2500 Models

AAM02JNH9JA1AN | XPR 2500 136-174 MHz 25W 128CH Mobile Radio } $872.00
AAM02JQH9JA1AN | XPR 2500 136-174 MHz 45W 128CH Mobile Radio |$953.00
AAM02QNH9JA1AN | XPR 2500 403-470 MHz 25W 128CH Mobile Radio | $932.00
AAM02QPH9JA1AN | XPR 2500 403-470 MHz 40W 128CH Mobile Radio | $1,013.00

Standard Package Includes:

  • XPR 2500 Radio
  • Microphone
  • Mounting Bracket
  • DC Power Cord
  • 2-year warranty

Motorola XPR 2500 Mobile Two-Way Radio Accessories

Simple, clear voice communication is a “must have” for your operation. Motorola’s radio portfolio is renowned for clearly better connections and workforce collaborations. Motorola realizes that to help you excel in your job you need accessories that match the performance of your Motorola radios – that truly fit your work environment. When you use our accessories with your radios, you are more efficient, and safer.

That’s why it’s important to use Motorola Original® accessories for your Motorola XPR 2500 Mobile Radio. They’re the only ones designed, built, and tested with your Motorola radio to optimize its performance. Only Motorola accessories unleash the full power of the radio.


UHF Antennas (RF only)

Motorola HAE4010


UHF Wide Area Through-Hole Mount Antenna for the 406-420 MHz range, 3.5 dB Gain, Mini-U

Motorola HAE4011


UHF Wide Area Through-Hole Mount Antenna for the 450-470 MHz range, 3.5 dB Gain, Mini-U

Image Not Available


UHF Wide Area Through-hole Mount Antenna for the 403-527 MHz range 2dB Gain, Mini-U

Motorola RAE4004ARB


UHF Wide Area Through-Hole Mount Antenna for the 445-470 MHz range, 5 dB Gain, Mini-U (with base)

Motorola HAE4002


UHF Urban Roof Mount 1/4 Wave Antenna for the 403-430 MHz range, Mini-U

Motorola HAE4003


UHF Urban Roof Mount 1/4 Wave Antenna for the 450-470 MHz range, Mini-U

VHF Antennas (RF Only)

Motorola HAD4006


VHF Urban Roof Mount 1/4 Wave Antenna for the 136-144 MHz range, Mini-U

Motorola HAD4007


VHF Urban Roof Mount 1/4 Wave Antenna for the 146-150.8 MHz range, Mini-U

Motorola HAD4008


VHF Urban Roof Mount 1/4 Wave Antenna for the 150.8-162 MHz range, Mini-U

Motorola HAD4009


VHF Urban Roof Mount 1/4 Wave Antenna for the 162-174 MHz range, Mini-U

Motorola HAD4022


VHF Wide Area Through-hole Mount Antenna for the 132-174 MHz range 3dB Gain, Mini-U

Installation, Cables and Mounting Accessories

Motorola RLN6466


Low Profile Trunnion Kit keeps radio tucked up under dash

Motorola RLN6467


High Profile Trunnion Kit with under dash or floor mount

Motorola RLN6468


Key Lock Trunnion Kit provides extra protection from theft

Image Not Available


In-Dash Mounting Kit - DIN

Motorola HKN4137


Power Cable to Battery - 10 foot, 15 amp 14 AWG

Motorola HKN4191


Power Cable to Battery - 10 foot, 20 amp 12 AWG

Motorola HKN4192


Power Cable to Battery - 20 foot, 20 amp 10 AWG

Motorola HKN9327


Ignition Sense Cable

Image Not Available


Trunnion Mounting Screws

External Push-to-Talk (PTT)

Motorola RLN4836


Emergency Footswitch can be used with a visor microphone

Motorola RLN4856


Remote Mount Footswitch Push-to-Talk to interface with your visor microphone

Motorola RLN4857


Remote Mount Pushbutton Push-to-Talk to interface with your visor microphone

Microphones and Audio Accessories

Motorola PMMN4090


Compact Microphone

Motorola PMMN4091


Heavy Duty Microphone

Motorola PMMN4089


Keypad Microphone

Motorola GMNN4065


Visor Microphone

Image Not Available


Telephone Style Handset with hang-up cup

Image Not Available


Desktop Microphone

Mobile Microphone Accessories

Motorola HLN9073


Microphone Hang-Up Clip (Requires installation)

Motorola HLN9414


Universal Microphone Hang-Up Clip (No installation required)

Public Address and Speakers

Image Not Available


7.5W External Speaker

Motorola RSN4001


13W External Speaker

Motorola GMKN4084


Speaker Extension Cable

Frequency Compatibility

The Motorola XPR 2500 mobile two-way radio is compatible with the Ultra High Frequency (UHF) and Very High Frequency (VHF) bands, with a power output rating of 1-25W, 25-45W – VHF, 1-25W, 25-40W – VHF.

Technology Compatibility


Analog technology is a legacy method of communication that enables the transmission of voice between users over dedicated frequencies. While analog technology has served its purpose effectively for decades, it is rapidly being replaced by digital technology, which offers enhanced clarity, security, and efficiency in communication. Digital technology also provides for the ability to incorporate data protocols, whereas analog operation is typically voice communication only. Nevertheless, analog technology remains a critical part of the legacy infrastructure for many land mobile radio systems, particularly in regions where digital upgrades may still be pending.


Digital technology represents a modern approach to wireless communication. Unlike analog technology, which uses continuous waveforms, digital technology encodes voice and data into discrete, binary code. This transformation allows for more efficient and secure transmission of information over radio waves. Digital technology offers several advantages, including improved voice clarity, reduced interference, and the ability to transmit data alongside voice communication. It also enables advanced features like encryption for secure conversations, GPS tracking for location services, and the integration of various applications for enhanced functionality. Digital technology has become the standard for many public safety agencies, commercial businesses, and organizations relying on reliable and efficient communication in their operations, making it a crucial component of modern land mobile radio systems.

Radio System Compatibility

MOTOTRBO XPR 2500 Programming

The Motorola XPR 2500 radio is programmed utilizing MOTOTRBO CPS 2.0 and is compatible with Radio Management software. The PMKN4147A USB Programming Cable will be required for programming.

Whether you handle the radio programming in-house or you would like our service staff to FCC license, program, optimize, and/or manage your devices, we are here to accommodate your needs, and we are happy to help!

Transportation and Logistics: Whether it’s managing a fleet of trucks, coordinating shipments, or ensuring smooth passenger transit, the XPR 2500 aids in real-time communication among drivers and dispatchers, enhancing efficiency and safety.

Education, Facilities, Emergency Services, Construction, Utilities and Energy, Manufacturing, Mining, Hospitality and Events, Security Services, Agriculture, Waste Management, Healthcare.Transportation and Logistics.

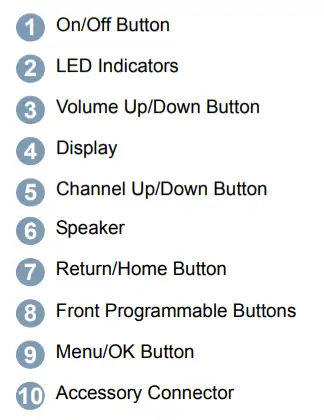

XPR 2500 Two-Way Radio Controls

Motorola XPR 2500 Specifications


Channel Capacity 128
Programmable buttons Yes, 4 buttons.
User programmable? No, requires dealer support

Performance data

Frequency range VHF (136-174 MHz) UHF (403-470 MHz)
Max Power output 45 Watts (VHF) 40 Watts (UHF)
Coverage area Adjustable power output for varying coverage
Repeater capable Yes, including some trunking systems

Physical specifications

Dimensions (H x W x L) 1.7 x 6.7 x 5.3 in.
Weight 2.9 lbs
Display Yes, Monochrome
Keypad Yes, limited with optional keypad mic

Motorola Two-Way Radio Systems

Direct Mode

All MOTOTRBO two-way radios have the capability to connect directly: radio-to-radio, for basic voice, data, text, and application support. However, this approach has limitations.


A conventional system is a step up from basic radio-to-radio communications. Radios communicate via a high-power repeater, giving better coverage and more centralized control.

Capacity Plus

Expand the capacity and extend the coverage of Motorola MOTOTRBO digital two-way radios with this entry-level digital trunking system. Up To 15 Sites / Up To 1600 Users Per Site*

IP Site Connect

Use your IP network to extend the voice and data capabilities of MOTOTRBO by linking repeaters together. You can create a continuous network that covers 15  locations.

Motorola XPR 2500 Special Pricing

Please contact us today to get a great deal on the Motorola XPR 2500 mobile radio.
